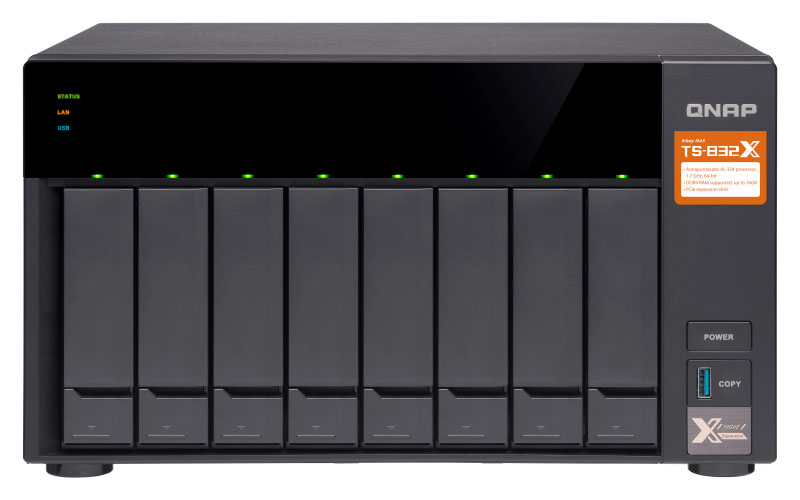

TS-832x

TS-832X Storage NAS com placa 10GbE, baixo custo, com expansão PCIe. Armazene até 96TB de dados! Faça Backup ou utilize o TS-832X como Servidor de Arquivos.

Categoria:  Desktop (Torre)

Compartilhar:

CPUProcessador de 1.7GHz quad-core AL-324 Alpine AnnapurnaLabs, uma empresa Amazon, 8 GB de RAM
Memória do sistema8GB DDR4 2400 (1 x 8 GB)
Memória máxima16 GB (1 x 16 GB)
Slot de memória1 x Slot SODIMM
Memória FlashFlash NAND de 512 MB
Baia de unidadeTroca a quente 8 x 3,5"/2,5" SATA 6Gb/s HDD ou SSD
Porta 10 Gigabit Ethernet2 x 10GbE SFP+
Porta Gigabit Ethernet2 x Gigabits RJ45
Porta USB3 x USB 3.0 (Frente: 1; Traseiro: 2)

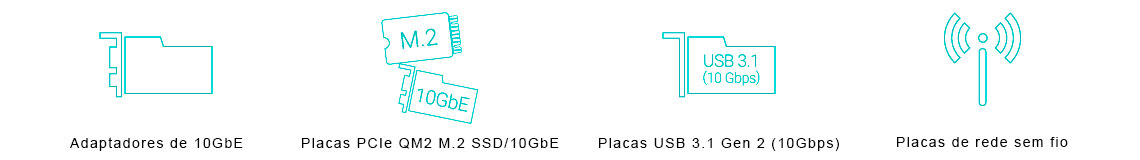

Slot PCIeSlot 1: Gen2 x 1 (para Wi-fi AIC)
Slot 2: Gen2 x2
Áudio1 x alto-falante integrado, saída de linha 1x de 3,5mm
Observação: Não é possível usar alto-falantes e a saída de linha ao mesmo tempo.
LEDs indicadoresStatus/Energia, LAN, USB, HDD 1-8
BotõesEnergia, Redefinição, Cópia de um toque USB
Aviso do sistemaCampainha
FormatoTorre
Dimensões (A x L x P)188,2 x 329,3 x 279,6 mm
7,41 x 12,96 x 11,01 polegadas
PesoPeso líquido: 6,52 kg (14,37 lbs)
VentiladorSistema: Ventilador inteligente 2 x 12 cm (12V DC)
CPU: Ventilador 1 x 6 cm
Fonte de alimentação250W, 100-240V AC, 50/60Hz, 3.5A
Temperaturas de operação e umidade relativa0 ~ 40?C ( 32?F ~ 104?F ), 5 ~ 95% RH sem condensação, bulbo úmido: 27?C (80,6?F)
Slot de segurançaSlot de segurança Kensington

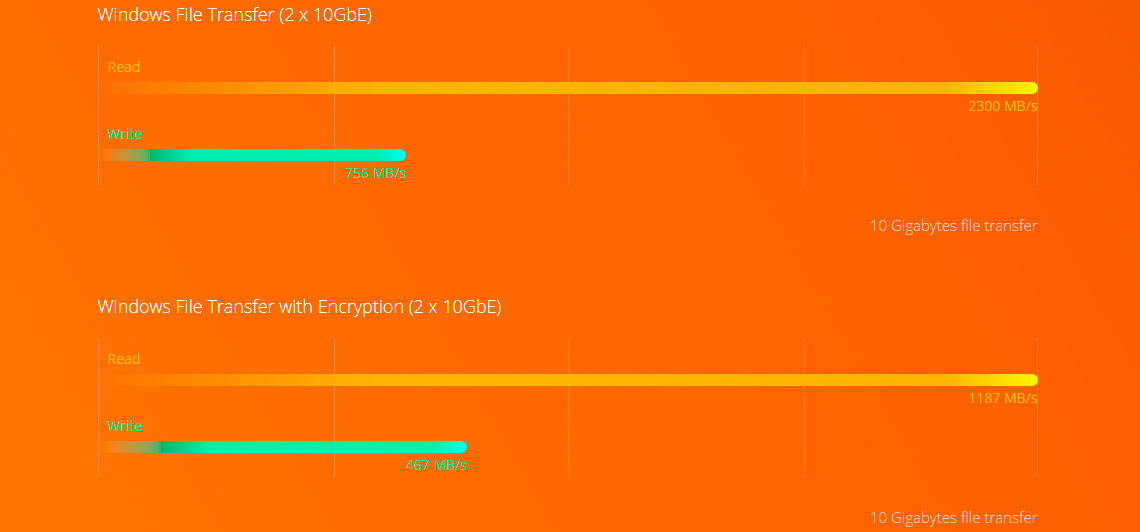

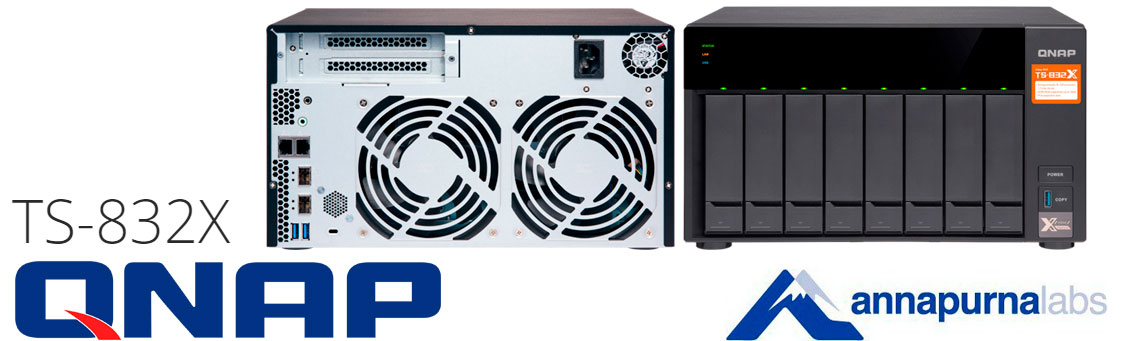

O poderoso quad-core de 8 baias TS-832X inclui duas portas de 10GbE SFP+ para suportar completamente as redes de alta velocidade de 10GbE, dentro de um orçamento econômico com ROI maximizado. Ele é também um NAS baseado em ARM que suporta tecnologia Qtier™ para armazenamento automático eficiente em camadas. Os slots PCIe ampliam o potencial do aplicativos, por exemplo, ao instalar o novo cartão QWA-AC2600 de rede sem fio da QNAP, o TS-832X é transformado em uma estação base sem fio, permitindo que os dispositivos conectem diretamente ao NAS para facilitar o acesso a seus serviços e conexões da internet.

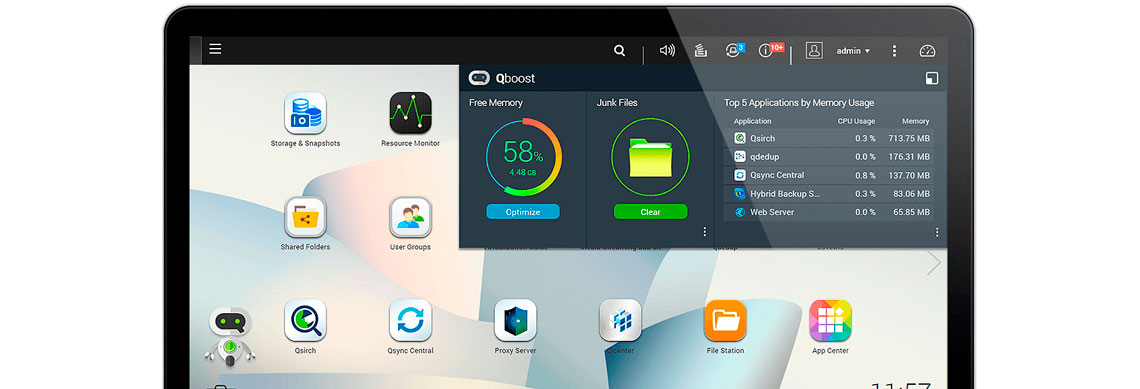

Operating System

QTS 4.3.4 (embedded Linux)

Supported Client Operating Systems
  1. Apple Mac OS 10.7 or later
  2. Linux and UNIX
  3. Microsoft Windows 7, 8, and 10
  4. Microsoft Windows Server 2003, 2008 R2, 2012, 2012 R2 and 2016
Supported Browsers
  1. Apple Safari 7 or later
  2. Google Chrome
  3. Microsoft Internet Explorer 10 or later
  4. Mozilla Firefox
Multilingual Support

Chinese (Traditional & Simpli?ed), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish

File System
  1. Internal Hard Drive: EXT4
  2. External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+
Networking
  1. TCP/IP (IPv4 & IPv6: Dual Stack)*
  2. Service binding based on network interfaces
  3. Squid Proxy server
  4. Proxy client
Show more...
Storage Management
  1. Storage space utilization monitoring
  2. Flexible volumes and LUNs with thin provisioning and space reclaiming
  3. Disk volume types
    • RAID 0/1/5/6/10/50/60, + hot spare, single, JBOD
    Show more...
    Power Management
    1. Wake on LAN
    2. Internal hard drive standby mode
    3. Scheduled power on/off
    4. Automatic power on after power recovery
    Show more...
    Qsync
    1. File syncing across multiple devices with SSL secure connection
    2. Selective synchronization for specific folders or subfolders
    3. Team folders as file center for better collaboration
      Note: The maximum number of sync tasks is 32 for x86 devices and 5 for ARM devices.
    4. File sharing through email links
    Show more...
    Access Right Management
    1. Batch users creation
    2. Import/Export users
    3. User quota management
    4. Local user access control for CIFS, AFP, FTP, and WebDAV
    Show more...
    Web Administration
    1. Multi-window, multi-tasking system management
    2. Smart toolbar and dashboard for system status display
    3. Dynamic DNS (DDNS)
    4. SNMP versions 2 and 3
      Show more...
      Security
      1. Network access protection with auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
      2. CIFS host access control for shared folders
      3. FIPS 140-2 validated AES 256-bit volume-based and shared folder data encryption*
      4. AES 256-bit external drive encryption

      Note: Data encryption functions may be unavailable in accordance with the legislative restrictions of some countries.

      Show more...
      Domain Authentication Integration
      1. Microsoft Active Directory (AD) & Domain Controller support
      2. LDAP server, LDAP client
      3. Domain users login via CIFS/SMB, AFP, FTP, and File Station
      Resource Monitor
      1. Monitor NAS system resources including CPU, memory and network.
      2. Monitor NAS storage resources including volumes, RAID, and disk activity.
      3. Monitor the resource usage of NAS applications.
      iSCSI (IP SAN)
      1. iSCSI target with multi-LUNs per target (Up to 256 targets/LUNs combined)
      2. Supports LUN mapping & masking
      3. Online LUN capacity expansion
      4. Support for SPC-3 persistent reservation
      Show more...
      Storage Plug & Connect
      1. Creating and mapping shared folders by QNAP Windows Q?nder Pro
      2. Creation of and connection to iSCSI target/LUN
      myQNAPcloud Service
      1. Private cloud storage and sharing
      2. Free host name registration (DDNS)
      3. Supports myQNAPcloud SSL certi?cates (DDNS)
      4. Auto router con?guration (via UPnP)
      Show more...
      Helpdesk
      1. Report issues to the QNAP support team, with automatically-collected system information.
      2. Allows QNAP support engineers to remotely connect to the NAS to fix issues (with user permission).
      File Server
      1. File sharing across Windows, Mac, and Linux/UNIX
      2. Windows ACL
      3. Advanced folder permissions for CIFS/SMB, AFP, FTP
      4. Shared folder aggregation (CIFS/SMB) monitoring & management
      FTP Server
      1. FTP over SSL/TLS (Explicit)
      2. FXP support
      3. Passive ftp port range control
      Hybrid Backup Sync
      1. Cloud storage backup to Amazon S3, Amazon Glacier, Microsoft Azure, Google Cloud Storage, Openstack Swift, WebDAV, and HKBN
      2. Cloud storage syncing with Microsoft OneDrive, Google Drive, Dropbox, Amazon Drive, Yandex Disk, Box, hubiC, BackBlaze B2, Amazon S3, and HiDrive
      3. RTRR server & client with bandwidth control
      4. Rsync server with download bandwidth control
      Show more...
      Qcontactz
      1. One-way scheduled sync of contacts from multiple Google accounts
      2. Import contacts from file: CSV or vCard 3.0
      3. Export contacts into a file: CSV and vCard 3.0
      4. Find duplicate contacts and merge them
      Show more...
      Notes Station 3
      1. Multi-user text editing using the collaborative editor
      2. Table creation using the spreadsheet editor
      3. Online quick preview of multimedia attachments
      4. Smart snapshot for version control
      QVR Pro
      1. Support for over 5,000 IP cameras
      2. 8 free camera licenses
        Note: The application supports a maximum of 16 camera channels. You can purchase additional licenses on the QNAP website.
      3. Instant playback for checking of recent events
      4. Visual aid using e-map
      Show more...

      Dimensões (A x L x P)188,2 x 329,3 x 279,6 mm
      7,41 x 12,96 x 11,01 polegadas
      PesoPeso líquido: 6,52 kg (14,37 lbs)

      TS-832X

      TS-832X

      Ethernet Cable x 2

      Ethernet Cable x 2

      Power Cord x 1

      Power Cord x 1

      Flat head screw (for 3.5

      Flat head screw (for 3.5" HDD)

      Flat head screws (For 2.5

      Flat head screws (For 2.5" HDD)

      Quick Installation Guide (QIG)

      Quick Installation Guide (QIG)
